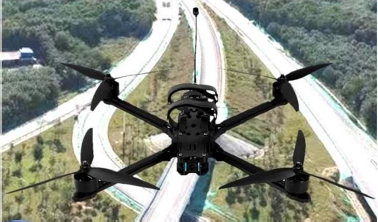

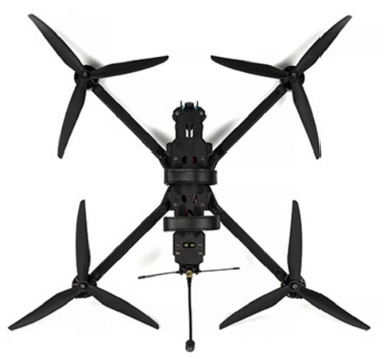

10 inch FPV unmanned aerial vehicle thermal imaging payload 4KG racing anti-interference unmanned aerial vehicle for high-speed crossing：
Product detailed parameters：
| project |
parameter |
project |
parameter |
| Product wheelbase |
396mm |
Produce demension |
420*420*60mm |
| Maximum flight distance |
20Km |
Maximum speed |
153Km/h |
| Bare weight |
793g |
Ceiling |
5000m |
| Rack |
10Inch Rack |
Maximum flying weight |
6000g |
| Rated load |
3000g |
Rated battery life |
10MIN 20S |
| Maximum Load Capacity |
4000g |
Propeller |
1050（Carbon fiber nylon） |
| Image transmission |
TCMM 3W（Optional） |
Flight control |
TCMM BL F405（Optional） |
| Motor |
TCMM 3115 900KV |
Power adjustment |
TCMM 60A (4in1) |
| Recommended battery |
6S10000 45C XT60 plug |
Camera |
TCMM1800TVL FPV Camera |
| |
|
|
|
